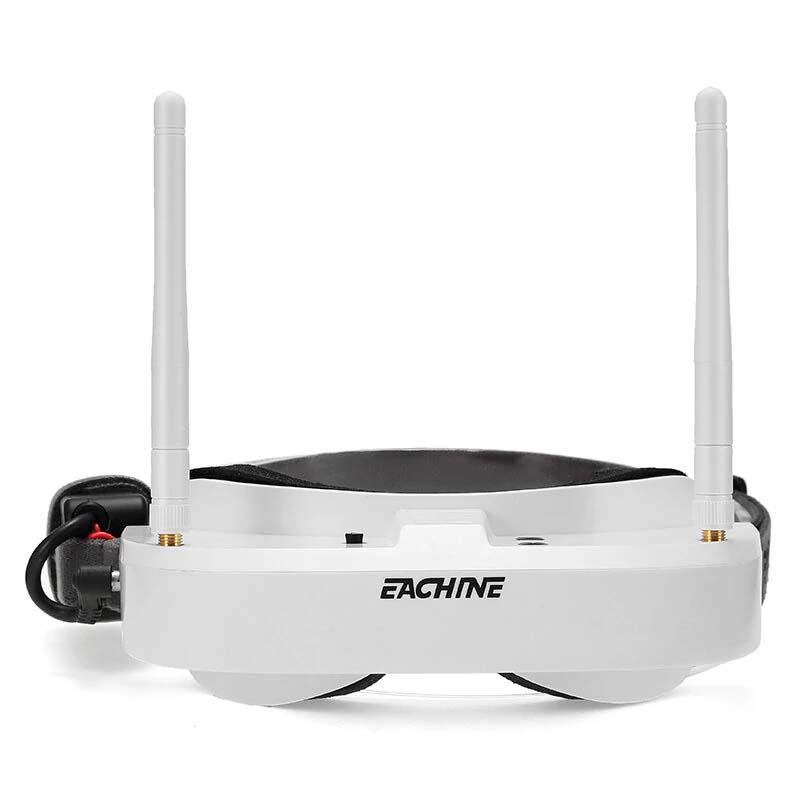

Eachine EV100 FPV Goggles 5.8GHz 72CH 720*540

Brand: Eachine
Model: EV100
User Manual: Click Here
Frequency: 5.8GHz (5333MHz - 5945MHz)
Sensitivity: -93dB
Antenna Impedance: 50Ω
Antenna Gain: 3dBi
Antenna Connector: RP-SMA
Video Format: NTSC/ PAL
AV Support: AV IN/OUT (Yes)
Adjustable Parameters: Focal Length, Brightness, Contrast (Yes)
Firmware Upgrading: Supported (Yes)
Power Input: 7.4V
Low Voltage Protection: 6.8V
Battery Configuration: 18650 battery case
Charging Method: USB Cable (not included)
Operating Temperature: -10℃ to +40℃
Resolution: 720*540
Diagonal FOV: 28°
IPD Adjustment Range: 58 - 68mm
Aspect Ratio: 4:3
Vision Correction Supports myopia up to -400°; hyperopia up to +150° (no extra lenses needed)
Product Dimensions: 165mm *76mm*30mm
Product Weight: 221g (including 57g battery + 13g antenna)
Package Weight: 400g
Important Notes - For safe and convenient transportation, the product includes an 18650 battery case--battery is NOT included. - The 18650 battery case does NOT have a balance plug for the DVR module; the DVR requires a separate power supply. - The built-in 5.8GHz receiver does NOT support audio reception. - Audio can be played through the goggles by connecting anexternal video source with audio to the AV IN port.
